本文正文：

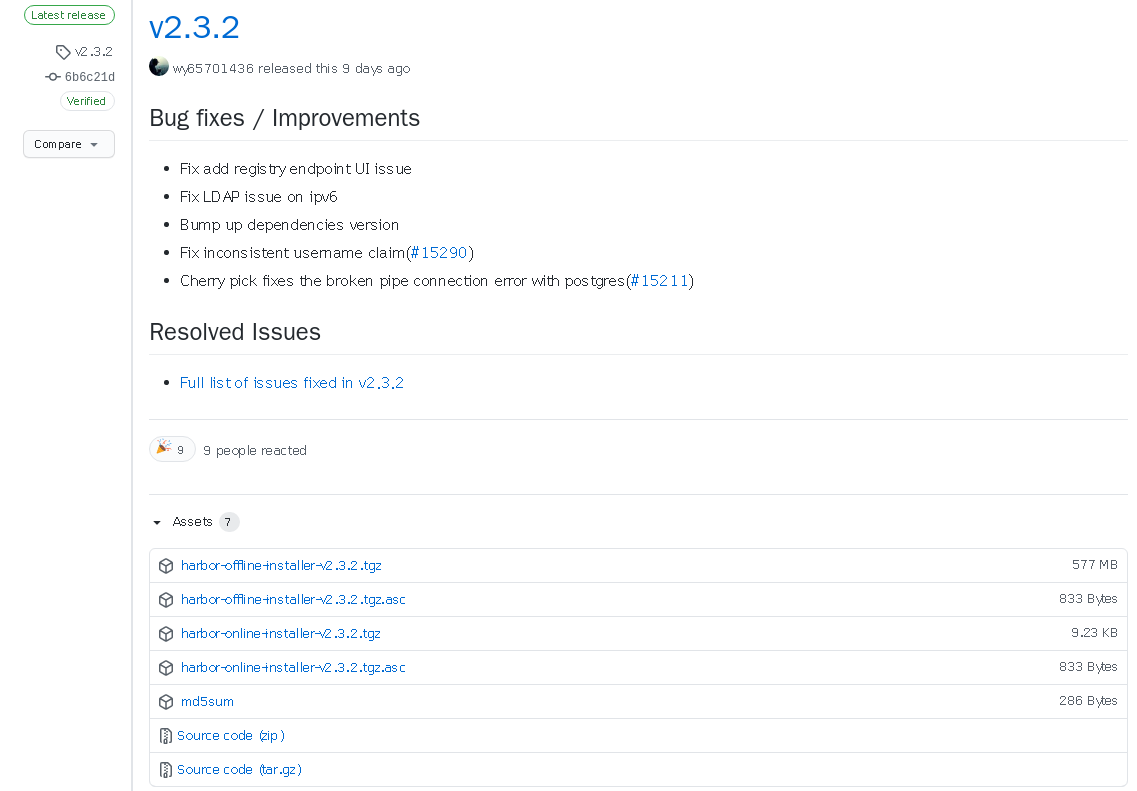

首先，下载harbor包，比较大（V2.3.2有577M，如下图），请耐心下载。
https://github.com/goharbor/harbor/releases
1、需要解压harbor压缩包到:/usr/local目录下面。(其他目录也是可以的)
[root@nb1 local]# tar -zvxf harbor-offline-installer-v2.3.2.tgz
harbor/harbor.v2.3.2.tar.gz
harbor/prepare
harbor/LICENSE
harbor/install.sh
harbor/common.sh
harbor/harbor.yml.tmpl
[root@nb1 local]# cd harbor/
[root@nb1 harbor]# ll
总用量 594380
-rw-r--r-- 1 root root 3361 8月 18 16:51 common.sh
-rw-r--r-- 1 root root 608611132 8月 18 16:52 harbor.v2.3.2.tar.gz
-rw-r--r-- 1 root root 7840 8月 18 16:51 harbor.yml.tmpl
-rwxr-xr-x 1 root root 2500 8月 18 16:51 install.sh
-rw-r--r-- 1 root root 11347 8月 18 16:51 LICENSE
-rwxr-xr-x 1 root root 1881 8月 18 16:51 prepare
2、修改harbor配置文件harbor.yml。
先复制harbor.yml.tmpl为harbor.yml
- 其中的hostname需要改为本机的IP地址 192.168.1.127
hostname: 192.168.1.127
- https访问的化，需要提供密钥路径
certificate: /your/certificate/path
private_key: /your/private/key/path
【注意：】
- http配置和https配置二选一，另一种注释；
- http配置：
hostname: 192.168.1.127
http:
port: 80
harbor_admin_password: harbor.2017
data_volume: /data/harbor/data
- https配置：
hostname: reg.dycoding.top
https:
# https port for harbor, default is 443
port: 8443
# The path of cert and key files for nginx
certificate: /data/harbor/reg/1_reg.dycoding.top_bundle.crt
private_key: /data/harbor/reg/2_reg.dycoding.top.key
harbor_admin_password: harbor.2017
data_volume: /data/harbor/data
3、安装harbor服务
【注意：】下面的过程是基于http方式的，https方式类似。
执行如下命令：
sh /usr/local/harbor/install.sh
提示：需要事先安装 docker 和 docker-compose
Docker安装直通车（注意使用下面的最新安装方式）：https://blog.csdn.net/wdy_2099/article/details/77367107
Docker-compose安装直通车: https://blog.csdn.net/wdy_2099/article/details/120042501
如果没有安装，则可能会提示以下信息：
[root@nb1 harbor]# sh install.sh
[Step 0]: checking if docker is installed ...
✖ Need to install docker(17.06.0+) first and run this script again.
或者提示：
[root@nb1 harbor]# sh install.sh
[Step 0]: checking if docker is installed ...
Note: docker version: 20.10.8
[Step 1]: checking docker-compose is installed ...
✖ Need to install docker-compose(1.18.0+) by yourself first and run this script again.
解决掉上述2个软件的问题后，重新执行 sh /usr/local/harbor/install.sh 命令
如果提示如下ERROR信息
Error happened in config validation...
ERROR:root:Error: The protocol is https but attribute ssl_cert is not set
只需要，将https的配置注释即可。CallBack，上述的注意点有说：http配置和https配置二选一，另一种注释；
# https related config
# https:
# https port for harbor, default is 443
# port: 443
# The path of cert and key files for nginx
# certificate: /your/certificate/path
# private_key: /your/private/key/path
注释调https后，重新执行 sh /usr/local/harbor/install.sh 命令：
[root@nb1 harbor]# sh install.sh
[Step 0]: checking if docker is installed ...
Note: docker version: 20.10.8
[Step 1]: checking docker-compose is installed ...
Note: docker-compose version: 1.29.2
[Step 2]: loading Harbor images ...
Loaded image: goharbor/redis-photon:v2.3.2
Loaded image: goharbor/nginx-photon:v2.3.2
Loaded image: goharbor/harbor-portal:v2.3.2
Loaded image: goharbor/trivy-adapter-photon:v2.3.2
Loaded image: goharbor/chartmuseum-photon:v2.3.2
Loaded image: goharbor/notary-signer-photon:v2.3.2
Loaded image: goharbor/harbor-core:v2.3.2
Loaded image: goharbor/harbor-log:v2.3.2
Loaded image: goharbor/harbor-registryctl:v2.3.2
Loaded image: goharbor/harbor-exporter:v2.3.2
Loaded image: goharbor/notary-server-photon:v2.3.2
Loaded image: goharbor/prepare:v2.3.2
Loaded image: goharbor/harbor-db:v2.3.2
Loaded image: goharbor/harbor-jobservice:v2.3.2
Loaded image: goharbor/registry-photon:v2.3.2
[Step 3]: preparing environment ...
[Step 4]: preparing harbor configs ...
prepare base dir is set to /usr/local/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
[Step 5]: starting Harbor ...
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating harbor-db ... done
Creating harbor-portal ... done
Creating redis ... done
Creating registry ... done
Creating registryctl ... done
Creating harbor-core ... done
Creating harbor-jobservice ... done
Creating nginx ... done
✔ ----Harbor has been installed and started successfully.----
上述，出现✔ ----Harbor has been installed and started successfully.----就表示安装Harbor成功了。
4、验证启动情况
可以通过 docker ps -a命令，或者，docker-compose ps命令进行查看。
[root@nb1 harbor]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
37555f540f9b goharbor/nginx-photon:v2.3.2 "nginx -g 'daemon of…" About a minute ago Up About a minute (healthy) 0.0.0.0:80->8080/tcp, :::80->8080/tcp nginx
a1279e837eb5 goharbor/harbor-jobservice:v2.3.2 "/harbor/entrypoint.…" About a minute ago Up About a minute (healthy) harbor-jobservice
4aa506a7b793 goharbor/harbor-core:v2.3.2 "/harbor/entrypoint.…" About a minute ago Up About a minute (healthy) harbor-core
089768d0fe69 goharbor/harbor-registryctl:v2.3.2 "/home/harbor/start.…" About a minute ago Up About a minute (healthy) registryctl
42a11fa321d1 goharbor/registry-photon:v2.3.2 "/home/harbor/entryp…" About a minute ago Up About a minute (healthy) registry
0761ec738a51 goharbor/redis-photon:v2.3.2 "redis-server /etc/r…" About a minute ago Up About a minute (healthy) redis
81e787ab6c95 goharbor/harbor-portal:v2.3.2 "nginx -g 'daemon of…" About a minute ago Up About a minute (healthy) harbor-portal
a131e3336753 goharbor/harbor-db:v2.3.2 "/docker-entrypoint.…" About a minute ago Up About a minute (healthy) harbor-db
a339d4255f2a goharbor/harbor-log:v2.3.2 "/bin/sh -c /usr/loc…" About a minute ago Up About a minute (healthy) 127.0.0.1:1514->10514/tcp harbor-log
[root@nb1 harbor]# docker-compose ps
Name Command State Ports
--------------------------------------------------------------------------------------------------------
harbor-core /harbor/entrypoint.sh Up (healthy)
harbor-db /docker-entrypoint.sh 96 13 Up (healthy)
harbor-jobservice /harbor/entrypoint.sh Up (healthy)
harbor-log /bin/sh -c /usr/local/bin/ ... Up (healthy) 127.0.0.1:1514->10514/tcp
harbor-portal nginx -g daemon off; Up (healthy)
nginx nginx -g daemon off; Up (healthy) 0.0.0.0:80->8080/tcp,:::80->8080/tcp
redis redis-server /etc/redis.conf Up (healthy)
registry /home/harbor/entrypoint.sh Up (healthy)
registryctl /home/harbor/start.sh Up (healthy)
[root@nb1 harbor]#

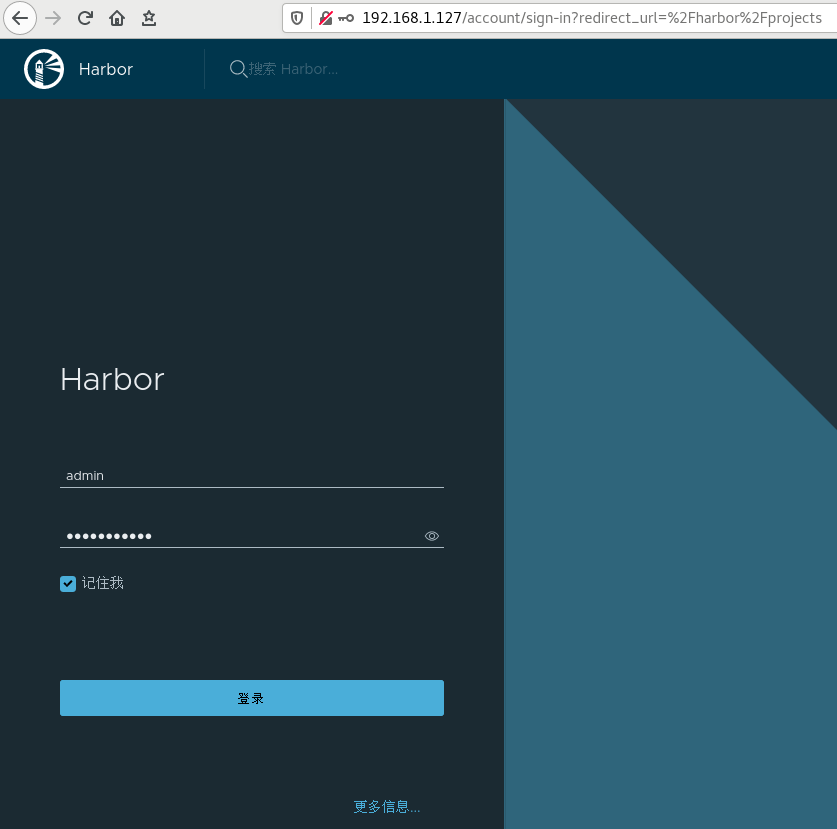

5、登录Harbor WebUI
浏览器输入你的主机IP访问：http://192.168.1.127
输入用户名admin和密码Harbor12345即可登录。
注意：密码是在harbor.yml中可以看到和修改的哈
# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: Harbor12345

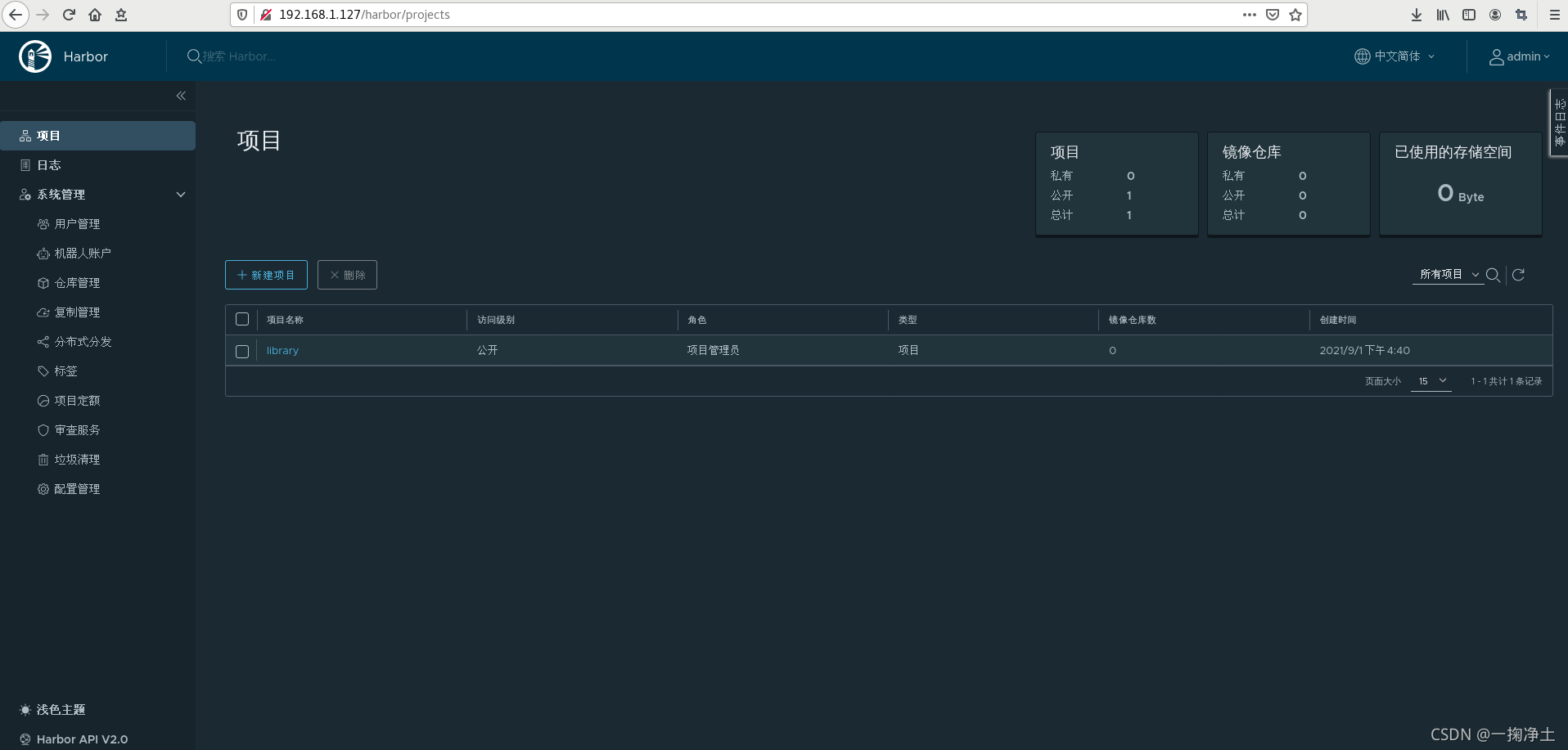

登录后的效果如下：
问题1：我们在用docker登录harbor的时候，拒绝访问(connection refused)：
[root@nb1 harbor]# docker login -u admin -p Harbor12345 http://192.168.1.127
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
Error response from daemon: Get "https://192.168.1.127/v2/": dial tcp 192.168.1.127:443: connect: connection refused
解决办法如下：
如下图，注释掉原来的ExecStart，将下面的代码加入即可。将注册IP设置为安装Harbor的主机IP
ExecStart=/usr/bin/dockerd -H fd:// --insecure-registry 192.168.1.127 --containerd=/run/containerd/containerd.sock
修改完成后，需要重启docker服务
systemctl daemon-reload
systemctl restart docker
再次docker登录harbor：
[root@nb1 harbor]# docker login -u admin -p Harbor12345 http://192.168.1.127
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
问题2：如果发现harbor没有启动，则需要在harbor目录（/usr/local/harbor：docker-compose.yml所在的目录）下执行如下命令：
[root@nb1 harbor]# docker-compose up -d
harbor-log is up-to-date
Starting harbor-portal ...
Starting harbor-portal ... done
Starting registry ... done
Starting harbor-db ... done
Starting redis ... done
Starting harbor-core ... done
Starting harbor-jobservice ...
Starting harbor-jobservice ... done
5、登录后，本地镜像打Tag, 然后推送到harbor服务器：
【以下命令执行，都需要先登录harbor：docker login -u admin -p Harbor12345 http://192.168.1.127】
docker tag nginx 192.168.1.127/test/nginx:test
docker push 192.168.1.127/test/nginx:test
详细过程为：
1、从官方镜像先拉去一个nginx镜像，作为示例：
[root@nb1 docker]# docker pull nginx
Using default tag: latest
latest: Pulling from library/nginx
e1acddbe380c: Pull complete
e21006f71c6f: Pull complete
f3341cc17e58: Pull complete
2a53fa598ee2: Pull complete
12455f71a9b5: Pull complete
b86f2ba62d17: Pull complete
Digest: sha256:4d4d96ac750af48c6a551d757c1cbfc071692309b491b70b2b8976e102dd3fef
Status: Downloaded newer image for nginx:latest
docker.io/library/nginx:latest
[root@nb1 docker]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx latest dd34e67e3371 2 weeks ago 133MB
# 2、打TAG
[root@nb1 docker]# docker tag nginx 192.168.1.127/test/nginx:test
# 3、Push到harbor仓库
[root@nb1 docker]# docker push 192.168.1.127/test/nginx:test
The push refers to repository [192.168.1.127/test/nginx]
fb04ab8effa8: Pushed
8f736d52032f: Pushed
009f1d338b57: Pushed
678bbd796838: Pushed
d1279c519351: Pushed
f68ef921efae: Pushed
test: digest: sha256:5e95e5eb8be4322e3b3652d737371705e56809ed8b307ad68ec59ddebaaf60e4 size: 1570

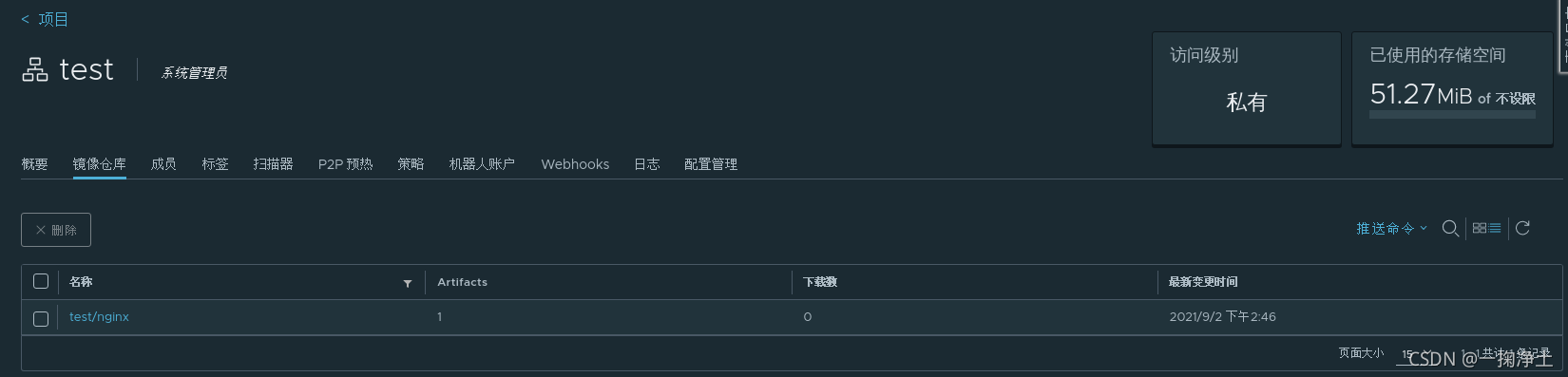

然后从Harbor的WebUI上就可以看到 nginx 已经存在了：
4、拉取镜像：
[root@nb001 harbor]# docker pull 192.168.1.127/test/nginx:test
93e71db: Pulling from test/nginx
bb7d5a84853b: Already exists
f02b617c6a8c: Already exists
d32e17419b7e: Already exists
c9d2d81226a4: Already exists
fab4960f9cd2: Already exists
510989d8108c: Already exists
c14538dbe225: Already exists
4a89eb6a8885: Pull complete
7bf621c94cdf: Pull complete
Digest: sha256:2d986246856d675930fb9bf1a0fa54ebac31359952713521447317855a278c1a
Status: Downloaded newer image for 192.168.1.127/test/nginx:test
192.168.1.127/test/nginx:test
