Flutter 项目实战(Dio+MVP+FutureBuilder )五

/ 没有感情万千、只有默默无闻 /

2022年跨年了,又涨了一岁。随着时光的流逝,工作多年的我还是在坚持些代码。互联网都有所谓的大龄危机,我对此毫无畏惧。不要因为社会存在一些大龄危机的恐慌,产生了很多心理上的负担 ,我虽然不再年少轻狂,但激情依旧。

你需要懂的法则就是 : 适者生存,优胜劣汰。

你朝思暮想的结果就是 : 冰冻三尺,非一日之寒。

你想太多的结果就是 : 还是在原点 , 人老了 , 留下的不是遗憾就是回忆。

................

/ 异步 UI 更新FutureBuilder /

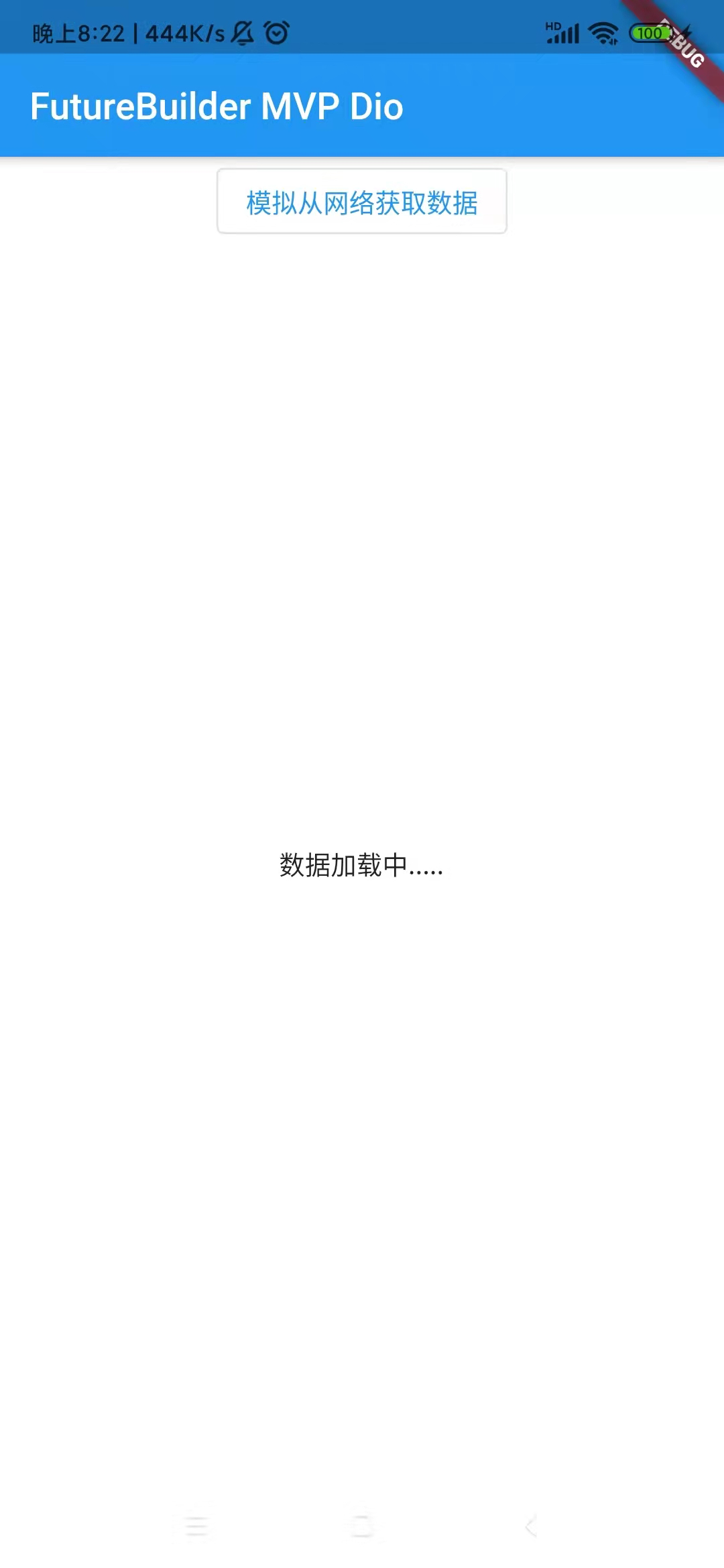

当我们打开app在网络畅通的情况下从服务器获取数据 , 同时获取数据需要时间 ,这时我们需要一个可以体现数据请求过程的进度条 , 获取到数据后渲染页面。

FutureBuilder 是继承自 StatefulWidget builder必须要有返回值 , 不能为空。

 const FutureBuilder({
    Key? key,
    this.future,
    this.initialData,
    required this.builder,
  }) : assert(builder != null),
       super(key: key);

final Future<T>? future;

/// The asynchronous computation to which this builder is currently connected,
  /// possibly null.
  ///
  /// If no future has yet completed, including in the case where [future] is
  /// null, the data provided to the [builder] will be set to [initialData].

builder 与异步请求建立的连接 (connected) 可能为空 (即future参数可能为空) 。如果异步请求没有完成 , 包括future参数为空 ,那么就提供默认数据(initialData) 给 builder使用。

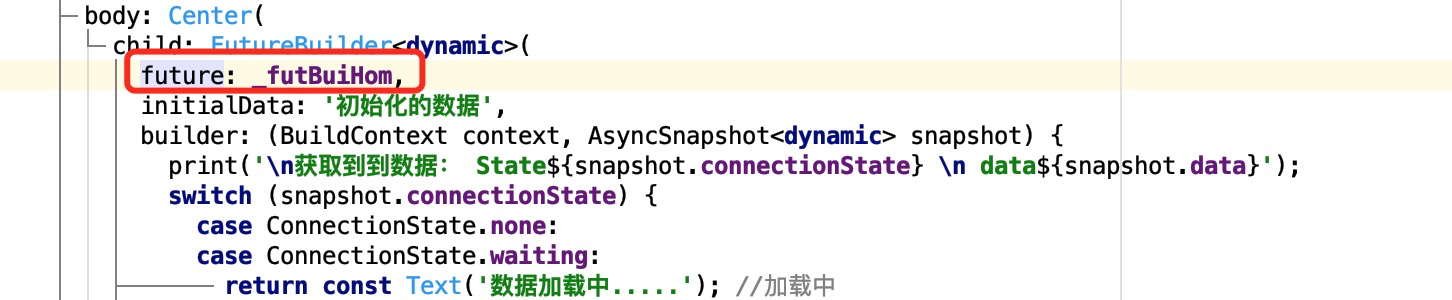

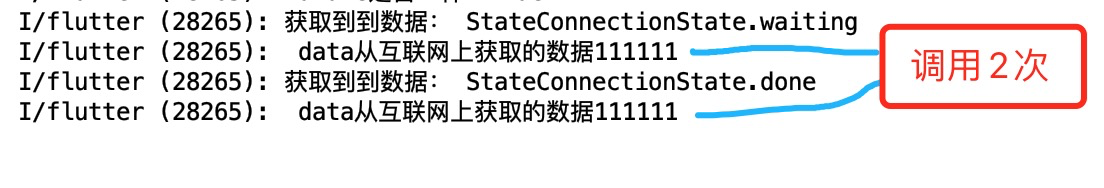

当future 不为空时

class _MyHomePageState extends State<MyHomePage> {
  var _futBuiHom;

  void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

  Future<String> _getNetData() async {
    return await Future.delayed(Duration(seconds: 2), () => "从互联网上获取的数据111111");
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
      ),
      body: Center(
        child: FutureBuilder<dynamic>(
          future: _futBuiHom,
          initialData: '初始化的数据',
          builder: (BuildContext context, AsyncSnapshot<dynamic> snapshot) {
            print('\n获取到到数据： State${snapshot.connectionState} \n data${snapshot.data}');
            switch (snapshot.connectionState) {
              case ConnectionState.none:
              case ConnectionState.waiting:
                return const Text('数据加载中.....'); //加载中
              default: //如果_calculation执行完毕
                if (snapshot.hasError) {
                  //若_calculation执行出现异常
                  return Text('Error: ${snapshot.hasError}');
                } else {
                  //若_calculation执行正常完成
                  return Text('Error: ${snapshot.data}');
                }
            }
          },
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: _handleGetNetData,
        tooltip: '模拟从网络获取数据',
        child: Icon(Icons.add),
      ),
    );
  }
}

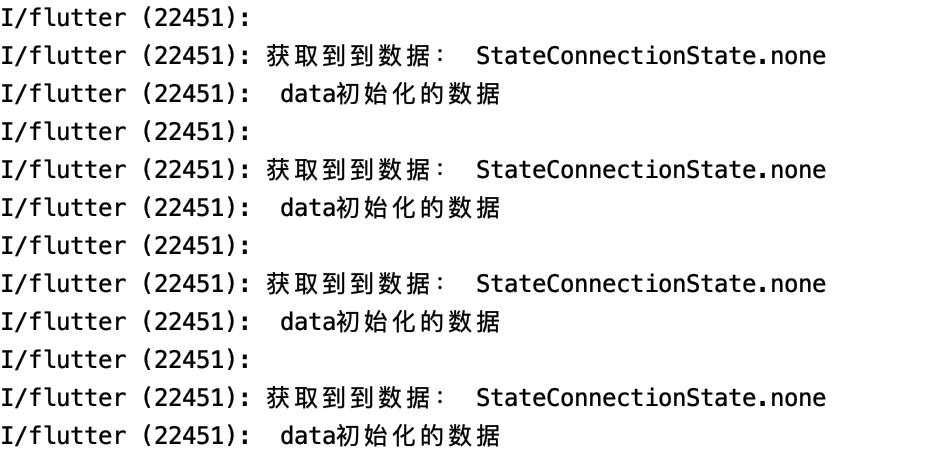

当Future 为空时

final AsyncWidgetBuilder<T> builder;

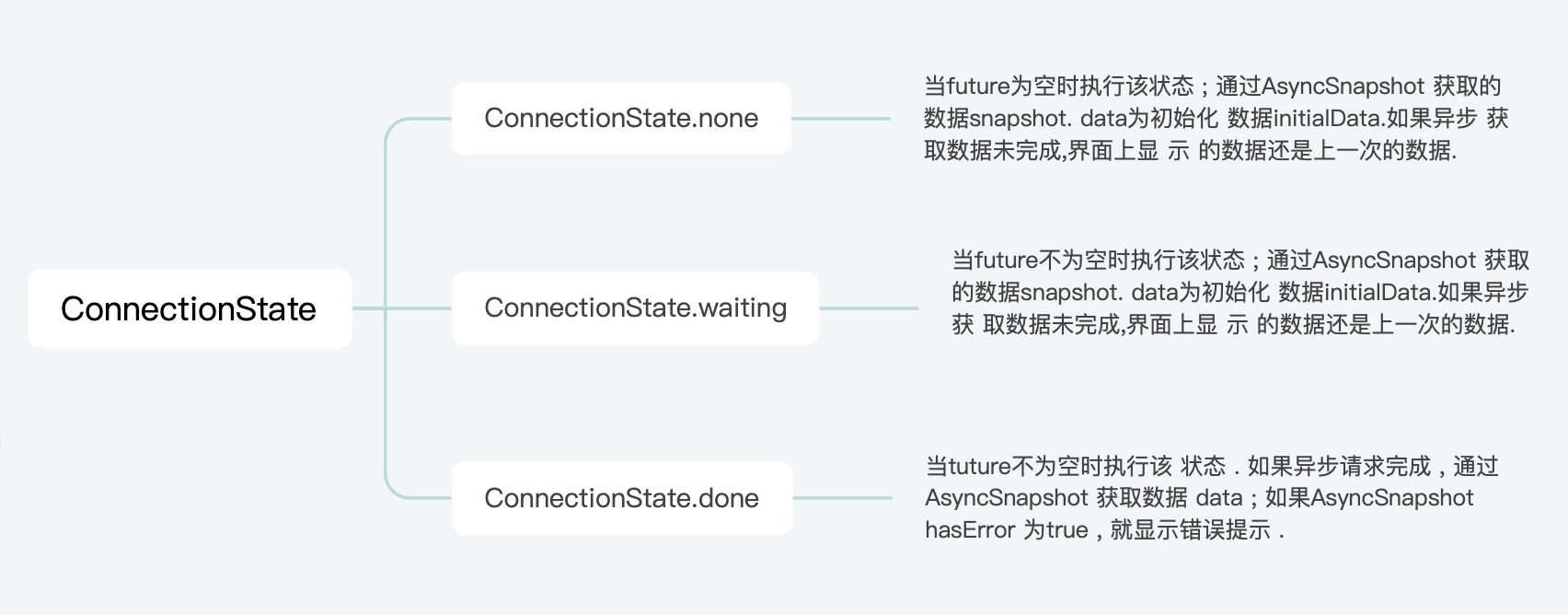

  /// The build strategy currently used by this builder.
  ///
  /// The builder is provided with an [AsyncSnapshot] object whose
  /// [AsyncSnapshot.connectionState] property will be one of the following
  /// values:
  ///
  ///  * [ConnectionState.none]: [future] is null. The [AsyncSnapshot.data] will
  ///    be set to [initialData], unless a future has previously completed, in
  ///    which case the previous result persists.
  ///
  ///  * [ConnectionState.waiting]: [future] is not null, but has not yet
  ///    completed. The [AsyncSnapshot.data] will be set to [initialData],
  ///    unless a future has previously completed, in which case the previous
  ///    result persists.
  ///
  ///  * [ConnectionState.done]: [future] is not null, and has completed. If the
  ///    future completed successfully, the [AsyncSnapshot.data] will be set to
  ///    the value to which the future completed. If it completed with an error,
  ///    [AsyncSnapshot.hasError] will be true and [AsyncSnapshot.error] will be
  ///    set to the error object.
  ///
  /// This builder must only return a widget and should not have any side
  /// effects as it may be called multiple times.

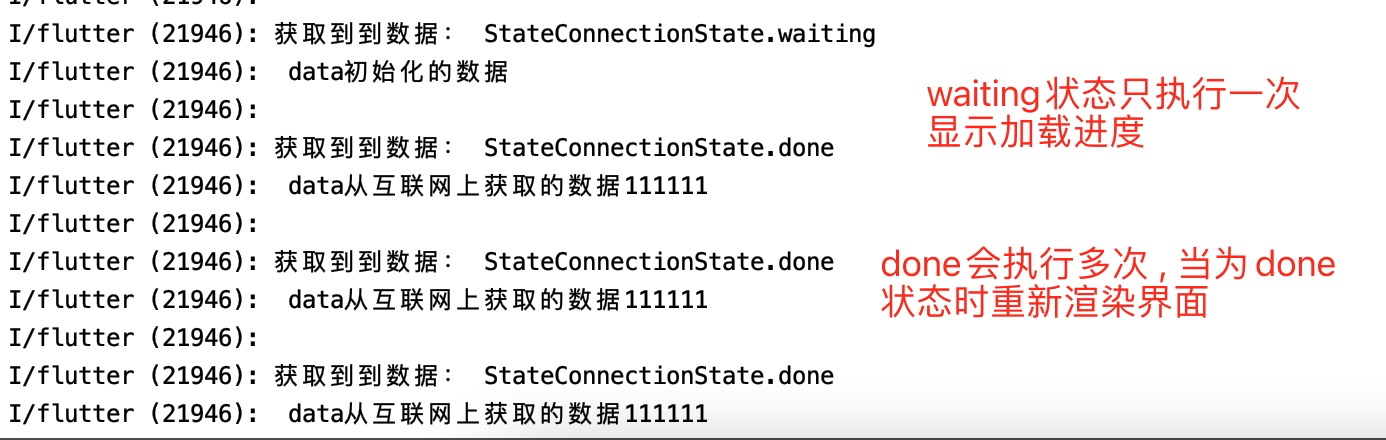

builder提供了一个AsyncSnapshot 对象 , 该对象可以获取异步请求的状态。

必须返回一个Widget , 因为builder 函数会被调用多次。

awaiting状态下显示异步请求进度条。

done 状态下 , 如果hasError 为false , 就重新渲染Widget 。

final T? initialData

/// The data that will be used to create the snapshots provided until a
  /// non-null [future] has completed.
  ///
  /// If the future completes with an error, the data in the [AsyncSnapshot]
  /// provided to the [builder] will become null, regardless of [initialData].
  /// (The error itself will be available in [AsyncSnapshot.error], and
  /// [AsyncSnapshot.hasError] will be true.)

FutureBuilder 初始化数据 . 当future参数不为空 (存在异步请求时) , 异步请求完成后 builder 函数将会被回调 .

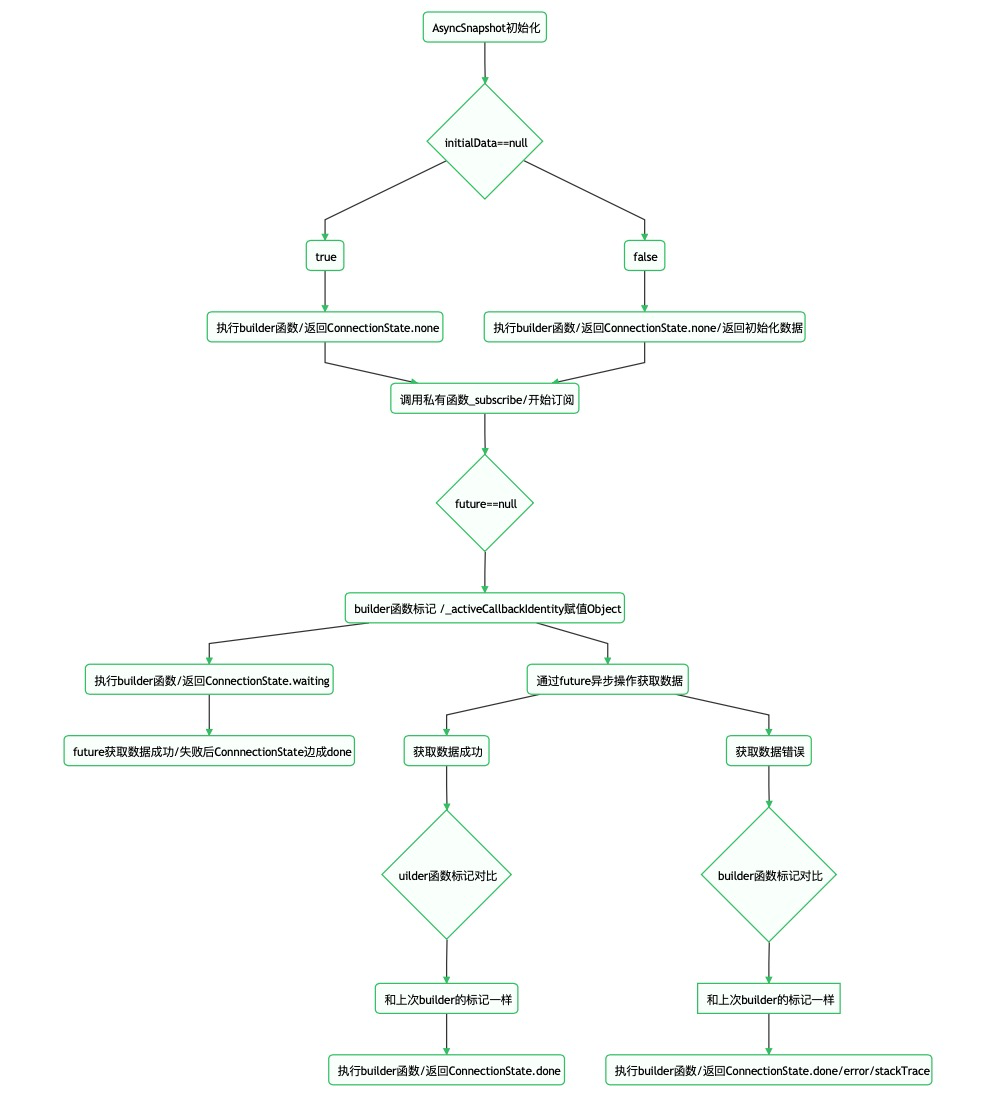

/ FutureBuilder 源码讲解/

开始订阅 (异步获取数据)

  void _subscribe() {
    if (widget.future != null) {
      final Object callbackIdentity = Object();
      _activeCallbackIdentity = callbackIdentity;
      widget.future!.then<void>((T data) {
        if (_activeCallbackIdentity == callbackIdentity) {
          setState(() {
            _snapshot = AsyncSnapshot<T>.withData(ConnectionState.done, data);
          });
        }
      }, onError: (Object error, StackTrace stackTrace) {
        if (_activeCallbackIdentity == callbackIdentity) {
          setState(() {
            _snapshot = AsyncSnapshot<T>.withError(ConnectionState.done, error, stackTrace);
          });
        }
      });
      _snapshot = _snapshot.inState(ConnectionState.waiting);
    }
  }

当父视图调用 setState 函数时,子视图的 didUpdateWidget 函数被调用 . 如果 future 的值直接引用获取数据的异步函数, 那么builder 对应的函数要被调用多次 .

class _MyHomePageState extends State<MyHomePage> {
  var _futBuiHom;

  void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

  Future<String> _getNetData() async {
    return await Future.delayed(Duration(seconds: 2), () => "从互联网上获取的数据111111");
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

  @override
  void didUpdateWidget(covariant MyHomePage oldWidget) {
    // TODO: implement didUpdateWidget
    super.didUpdateWidget(oldWidget);
    print('didUpdateWidget');
  }

  @override
  Widget build(BuildContext context) {

    print('build(BuildContext context)');
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
      ),
      body: Center(
        child: FutureBuilder<dynamic>(
          future: _getNetData(),
          initialData: '初始化的数据',
          builder: (BuildContext context, AsyncSnapshot<dynamic> snapshot) {
            print('\n获取到到数据： State${snapshot.connectionState} \n data${snapshot.data}');
            switch (snapshot.connectionState) {
              case ConnectionState.none:
              case ConnectionState.waiting:
                return const Text('数据加载中.....'); //加载中
              default: //如果_calculation执行完毕
                if (snapshot.hasError) {
                  //若_calculation执行出现异常
                  return Text('Error: ${snapshot.hasError}');
                } else {
                  //若_calculation执行正常完成
                  return Text('Error: ${snapshot.data}');
                }
            }
          },
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: _handleGetNetData,
        tooltip: '模拟从网络获取数据',
        child: Icon(Icons.add),
      ),
    );
  }
}

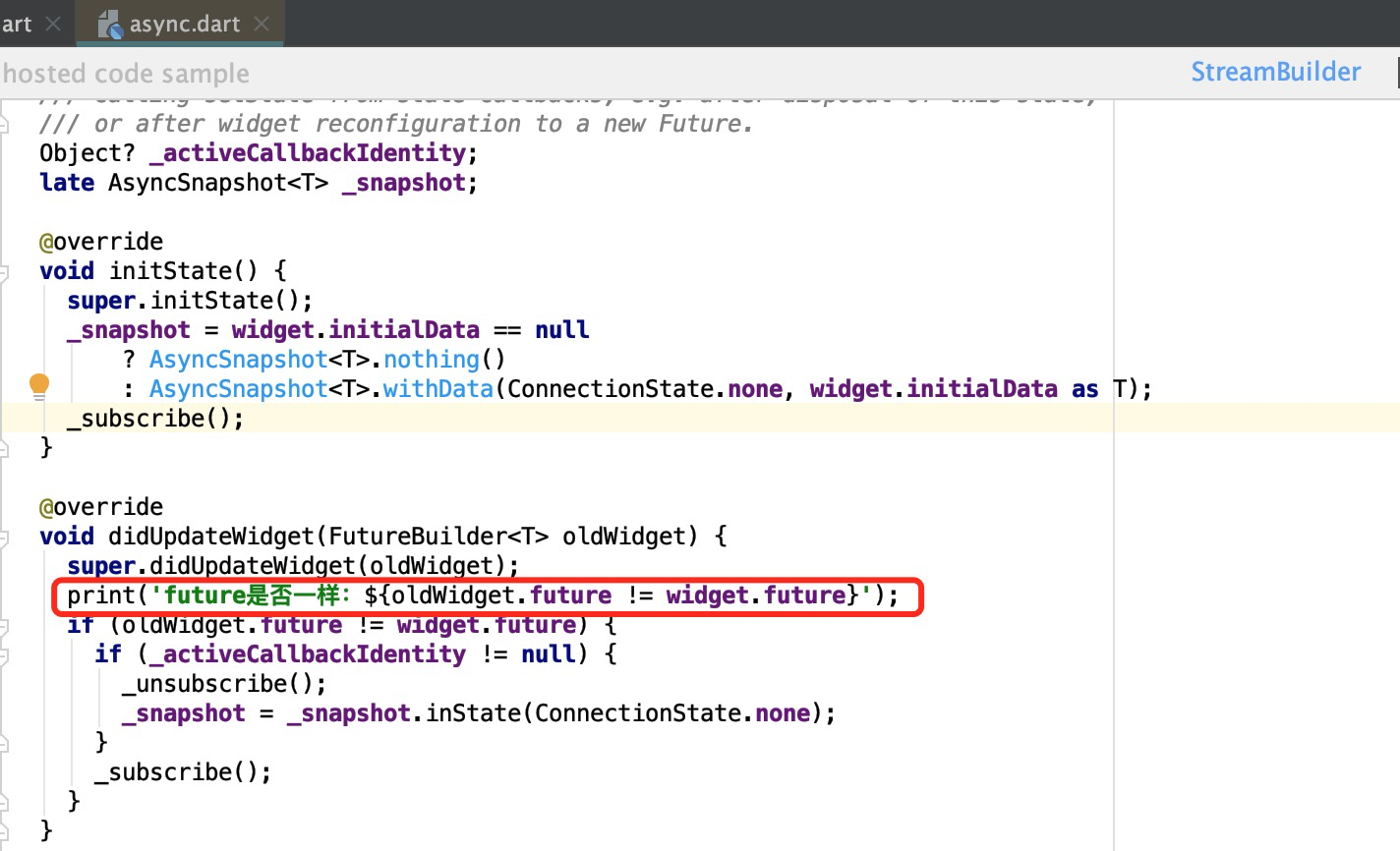

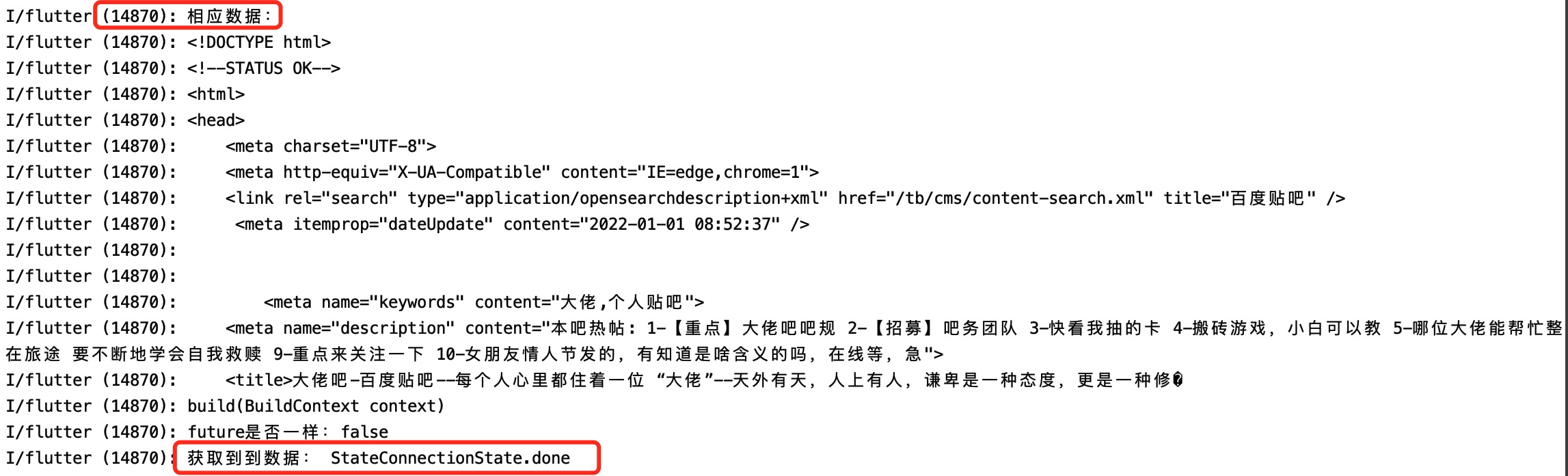

在FutureBuilder 状态管理类 _FutureBuilderState 的 didUpdateWidget 打印当前future和上一次的future实例是否一样 .

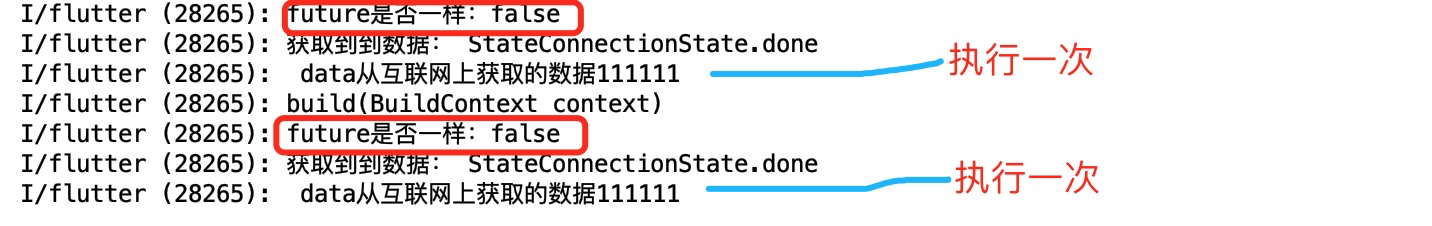

结果显示不一样

所以为了让每次异步请求的实例是同一个 future ,需要在Widget 创建时在initState 函数里面初始化异步请求的future , 每次FutureBuilder 重新构建时都从原来的future异步请求中获取数据.

 var _futBuiHom;

  Future<String> _getNetData() async {
    return await Future.delayed(Duration(seconds: 2), () => "从互联网上获取的数据111111");
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

每次调用setState刷新界面

 void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

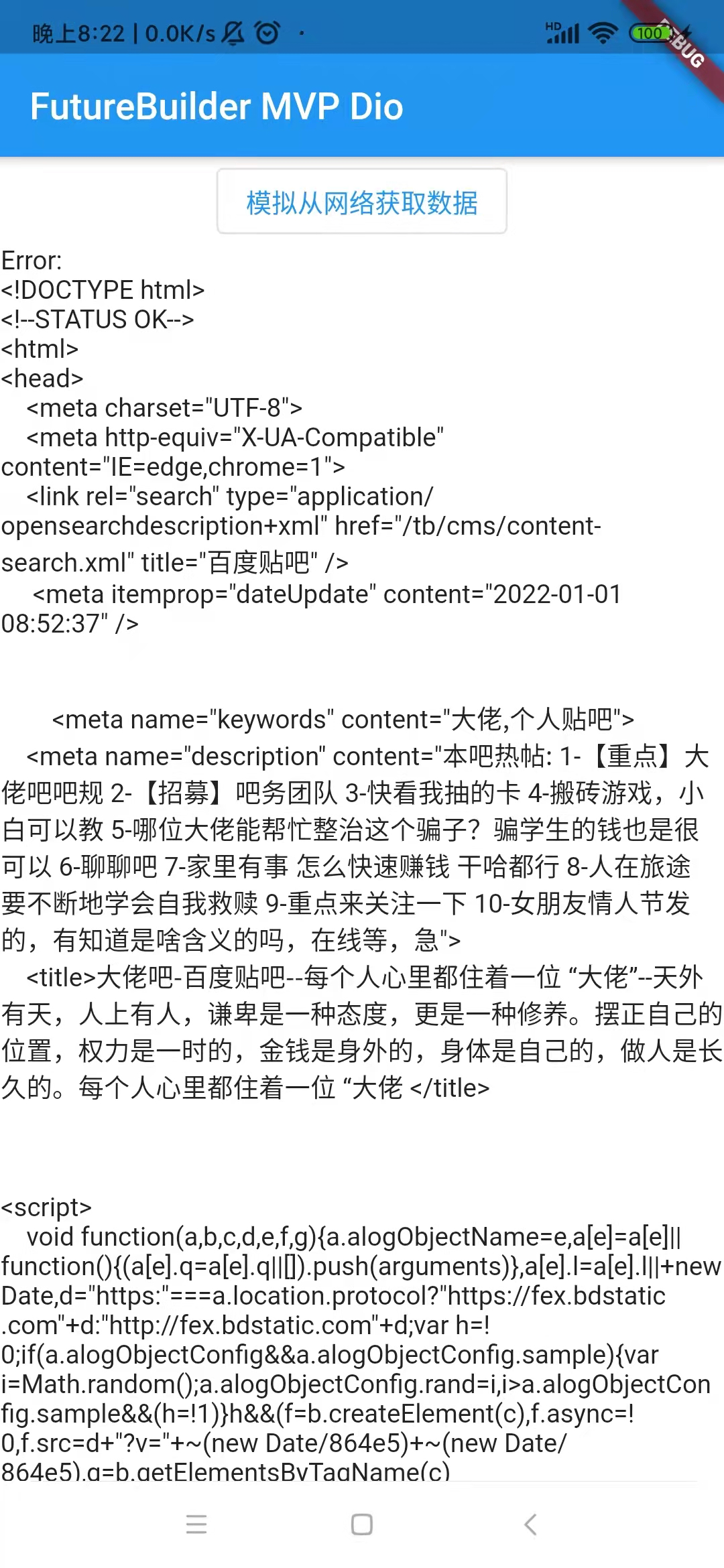

/ FutureBuilder + Dio +MVP 实现网络请求 /

Flutter 项目实战 Dio网络请求四

MVP 模式 - 模型层 - 基础类

创建IModel

import 'package:flutter_dio_mvp_futurebuilder/base/http/http_error.dart';

abstract class IModel {
  ///释放网络请求
  void dispose();
}

typedef SuccessCallback<T> = void Function(dynamic data);

typedef FailureCallback = void Function(HttpError error);

AbstractModel

import 'IModel.dart';
abstract class AbstractModel implements IModel {
  String? _tag;

  String? get tag => _tag;

  AbstractModel() {
    _tag = '${DateTime.now().millisecondsSinceEpoch}';
  }

}

MVP模式 - Presenter基础类

IPresenter

import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

abstract class IPresenter<V extends IView> {

  void attachView(V view);


  void detachView();
}

AbstractPresenter

import 'package:flutter_dio_mvp_futurebuilder/base/model/IModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

import 'IPresenter.dart';

abstract class AbstractPresenter<V extends IView , M extends IModel >
    implements IPresenter {
  M? _model;
  V? _view;

  @override
  void attachView(IView  view) {
    this._model = createModel() as M?;
    this._view = view as V?;
  }

  @override
  void detachView() {
    if (_view != null) {
      _view = null;
    }
    if (_model != null) {
      _model!.dispose();
      _model = null;
    }
  }

  V? get view {
    return _view;
  }

//  V get view => _view;

  M? get model => _model;

  IModel  createModel();

}

IView

class IView {
  ///开始加载
  void startLoading() {}

  ///加载成功
  void showLoadSuccess() {}

  ///加载失败
  void showLoadFailure(String code, String message) {}

}

BaseView

import 'package:flutter/material.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/presenter/IPresenter.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

abstract class BaseView extends StatefulWidget {
  BaseView({Key? key}) : super(key: key);

  @override
  BaseViewState createState() => getState();

  ///子类实现
  BaseViewState getState();
}

abstract class BaseViewState<P extends IPresenter, V extends BaseView>
    extends State<V> with IView {
  P? presenter;

  @override
  void initState() {
    super.initState();

    presenter = createPresenter();
    if (presenter != null) {
      presenter?.attachView(this);
    }
  }

  P? createPresenter() {}

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      ///导航栏
      appBar: buildAppBar(),

      ///内容区域
      body: buildWidget(),

      ///内容区域背景颜色
      backgroundColor: buildBodyColor(),
    );
  }

  buildWidget();

  buildAppBar() => null;

  Color buildBodyColor() {
    return Color(0xff00FFFFFF);
  }
}

创建用于业务逻辑处理的callback

import 'package:flutter_dio_mvp_futurebuilder/base/model/IModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/presenter/IPresenter.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/view/IView.dart';

abstract class CDataModel extends IModel {
  ///
  loadData(Map<String, dynamic> p, SuccessCallback s, FailureCallback f);
}

abstract class CDataPresenter extends IPresenter {
  ///
  loadData(Map<String, dynamic> p);
}

abstract class CDataView extends IView {
  ///
  loadData(d);
}

模型层(Model)、Presenter、视图层(View) 的具体实现

模型层(Model) 实现

import 'package:flutter_dio_mvp_futurebuilder/base/http/http_manager.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/model/AbstractModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/busmer/mvp_callback.dart';

class MData extends AbstractModel implements CDataModel {
  @override
  void dispose() {
    // TODO: implement dispose
    HttpManager().cancel(tag!);
  }

  @override
  loadData(Map<String, dynamic> p, s, f) async{
    return HttpManager().get(
        ///网络请求地址
        url: '/f',
        tag: tag!,
        successCallback: (data) {
          s(data);
        },
        errorCallback: (data) {
          f(data);
        },
        params: p);
  }
}

Presenter 实现

import 'package:flutter_dio_mvp_futurebuilder/base/model/IModel.dart';
import 'package:flutter_dio_mvp_futurebuilder/base/presenter/AbstractPresenter.dart';
import 'package:flutter_dio_mvp_futurebuilder/busmer/mvp_callback.dart';
import 'package:flutter_dio_mvp_futurebuilder/model/m_data.dart';

class PData extends AbstractPresenter<CDataView, CDataModel>
    implements CDataPresenter {
  @override
  IModel createModel() {
    return MData();
  }

  @override
  loadData(Map<String, dynamic> p) async{
    // TODO: implement loadData
    view?.startLoading();
   return model?.loadData(p, (data) {
      view?.showLoadSuccess();
      view?.loadData(data);
      model?.dispose();
    }, (error) {
      view?.showLoadFailure(error.code!, error.message!);
    });

  }
}

视图层(View) 实现

class MyHomePage extends BaseView {
  @override
  BaseViewState<IPresenter<IView>, BaseView> getState() {
    // TODO: implement getState
    return _MyHomePageState();
  }
}

class _MyHomePageState extends BaseViewState<PData, MyHomePage>
    implements CDataView {
  var _futBuiHom;

  void _handleGetNetData() async {
    await _getNetData();
    setState(() {});
  }

  _getNetData() async {
    return await presenter!
        .loadData({'ie': 'utf-8', 'kw': '大佬', 'fr': 'search'});
  }

  @override
  void initState() {
    // TODO: implement initState
    super.initState();
    _futBuiHom = _getNetData();
  }

  @override
  loadData(d) {}

  @override
  PData? createPresenter() {
    // TODO: implement createPresenter
    return PData();
  }

  @override
  Color buildBodyColor() {
    // TODO: implement buildBodyColor
    return Color(0xffFFFFFF);
  }

  @override
  buildWidget() {
    // TODO: implement buildWidget
    print('build(BuildContext context)');

    return Column(
      children: [
        AppBar(
          title: Text('FutureBuilder MVP Dio'),
        ),
        OutlinedButton(
          onPressed: _handleGetNetData,
          child: Text('模拟从网络获取数据'),
        ),
        Expanded(
          flex: 1,
          child: Center(
            child: FutureBuilder<dynamic>(
              future: _futBuiHom,
              initialData: '初始化的数据',
              builder: (BuildContext context, AsyncSnapshot<dynamic> snapshot) {
                print(
                    '\n获取到到数据： State${snapshot.connectionState} \n data${snapshot.data}');
                switch (snapshot.connectionState) {
                  case ConnectionState.none:
                  case ConnectionState.waiting:
                    return const Text('数据加载中.....'); //加载中
                  default: //如果_calculation执行完毕
                    if (snapshot.hasError) {
                      //若_calculation执行出现异常
                      return Text('Error: ${snapshot.hasError}');
                    } else {
                      //若_calculation执行正常完成
                      return Text('Error: ${snapshot.data}');
                    }
                }
              },
            ),
          ),
        ),
      ],
    );
  }
}

main() 函数初始化网络请求 (网络请求需要的域名baseUrl)

void main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await SystemChrome.setPreferredOrientations([DeviceOrientation.portraitUp]);
  await SystemChrome.setEnabledSystemUIOverlays(SystemUiOverlay.values);

  ///网络请求管理初始化
  HttpManager().init(baseUrl: 'https://tieba.baidu.com');
  runApp(MyApp());
}

发起了网络请求

总结

FutureBuilder 用于显示异步请求的数据, 避免数据请求多次调用builder 对应的函数 , 我们需要在Widget 创建时 State 函数 initState 里面进行异步请求的初始化 .

Future+Dio+MVP 案例下载
