部署前准备：

先安装个Linux服务器，配置随便
准备好Maven3、JDK1.8压缩包和Git安装包

好，下面开始操：

一、安装docker-ce

# 到 /etc/yum.repos.d 目录下使用wget指令拉取docker.repo文件，docker--yum源地址：
# https://download.docker.com/linux/centos/docker-ce.repo
[root@node1 ~]# cd /etc/yum.repos.d/

[root@node1 yum.repos.d]# wget https://download.docker.com/linux/centos/docker-ce.repo

[root@node1 yum.repos.d]# ls
bak  centos.repo  docker-ce.repo

# 清除yum缓存
[root@node1 yum.repos.d]# yum clean all

# 更新yum源
[root@node1 yum.repos.d]# yum -y update

# 安装docker依赖包
[root@node1 ~]# yum install -y yum-utils device-mapper-persistent-data lvm2

# 安装docker
[root@node1 ~]# yum -y install docker-ce

# 关闭selinux和防火墙
[root@node1 ~]# sed  -i  's/SELINUX=enforcing/SELINUX=disabled/g'  /etc/selinux/config
[root@node1 ~]# systemctl disable --now firewalld
[root@node1 ~]# iptables -F
[root@node1 ~]# iptables -X
[root@node1 ~]# iptables -Z
[root@node1 ~]# /usr/sbin/iptables-save

# 启动docker并设置开机自启动
[root@node1 yum.repos.d]# systemctl enable --now docker

# 查看docker服务状态
[root@node1 yum.repos.d]# systemctl status docker

到这里docker社区版就已经安装好了，下面我们得传maven3和jdk1.8压缩包到Linux服务器里面

二、传送maven3和jdk1.8的压缩包到服务器并解压配置环境文件

# 上传maven3和jdk1.8

# 配置jdk和maven的环境变量
[root@node1 ~]# ls

# 解压
[root@node1 ~]# tar -zxvf apache-maven-3.6.1-bin.tar.gz
[root@node1 ~]# tar -zxvf jdk-8u121-linux-x64.tar.gz

# 在/usr/local目录下 创建maven3和jdk1.8目录
[root@node1 ~]# mkdir -p /usr/local/maven3
[root@node1 ~]# mkdir -p /usr/local/jdk1.8

# 拷贝解压后的maven3和jdk1.8到 新创建的maven3和jdk1.8目录下
[root@node1 ~]# cd apache-maven-3.6.1
[root@node1 apache-maven-3.6.1]# cp -r * /usr/local/maven3/
[root@node1 apache-maven-3.6.1]# cd ..
[root@node1 ~]# cd jdk1.8.0_121/
[root@node1 jdk1.8.0_121]# cp -r * /usr/local/jdk1.8/

# 配置环境变量文件
[root@node1 ~]# vim /etc/profile
# 到最后一行添加以下内容：
# jdk
export JAVA_HOME=/usr/local/jdk1.8
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH

# maven
export M2_HOME=/usr/local/maven3
export PATH=$PATH:$JAVA_HOME/bin:$M2_HOME/bin

# 保存退出

# 生效环境变量文件并查看jdk和maven版本信息
[root@node1 ~]# source /etc/profile
[root@node1 ~]# java -version
java version "1.8.0_121"
Java(TM) SE Runtime Environment (build 1.8.0_121-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.121-b13, mixed mode)
[root@node1 ~]# mvn -version
Apache Maven 3.6.1 (d66c9c0b3152b2e69ee9bac180bb8fcc8e6af555; 2019-04-05T03:00:29+08:00)
Maven home: /usr/local/maven3
Java version: 1.8.0_121, vendor: Oracle Corporation, runtime: /usr/local/jdk1.8/jre
Default locale: zh_CN, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-1160.45.1.el7.x86_64", arch: "amd64", family: "unix"

到这里jdk和maven的环境就配置好了，下面我们要在IDEA里创建一个SpringBoot的项目

三、IDEA创建SpringBoot项目

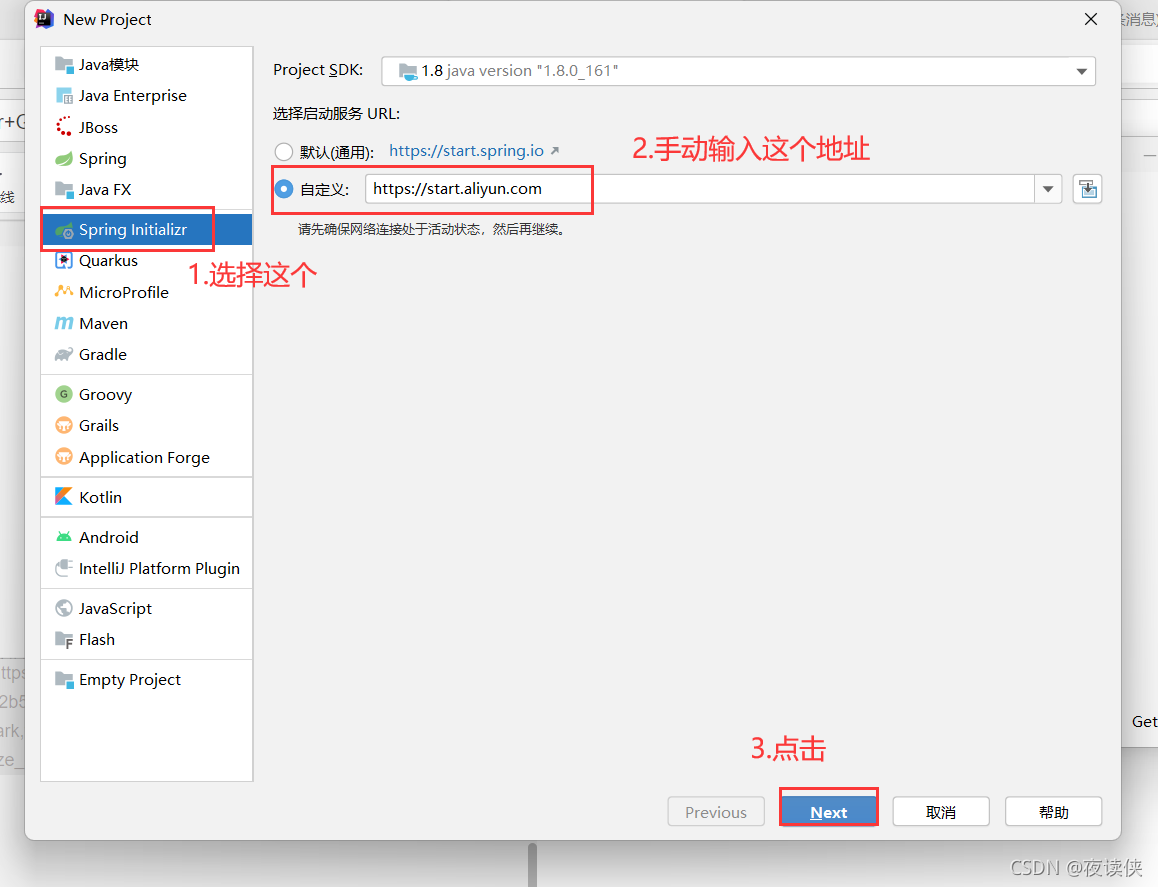

# 创建SpringBoot项目

# 新建controller包，新建LoginController.java类，编写测试程序

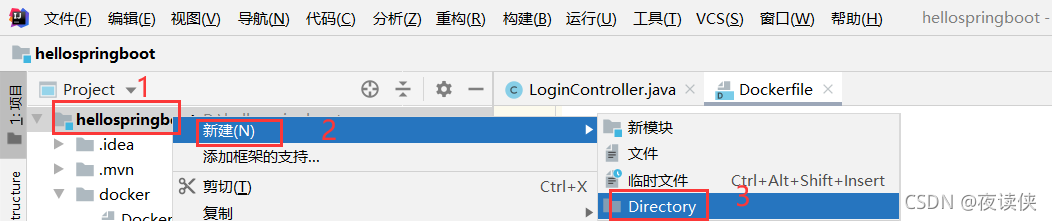

# 新建docker目录，新建Dockerfile文件，编写Dockerfile

# 在编写Dockerfile之前，先打包

# 编写Dockerfile

# 编写完成后再重新打包

到这里项目就配置完成了，下面要在我们的Windows本机安装Git

四、Windows安装Git

# 使用ssh-keygen -t rsa -C "root" 生成Windows本机秘钥和公钥

到这里Windows的Git安装好了，钥匙也生成好了，下面就到Linux服务器里拉取gitlab和jenkins的镜像了

五、拉取gitlab和jenkins镜像并部署gitlab

# gitlab镜像拉取
[root@node1 ~]# docker pull gitlab/gitlab-ce

# jenkins镜像拉取
[root@node1 ~]# docker pull jenkins/jenkins:lts

# 查看已下载镜像
[root@node1 ~]# docker images
REPOSITORY         TAG       IMAGE ID       CREATED       SIZE
gitlab/gitlab-ce   latest    cb10c65dbb7b   6 days ago    2.31GB
jenkins/jenkins    lts       e4ebf98bd6ca   3 weeks ago   441MB

# 部署gitlab
# 创建目录
[root@node1 ~]# mkdir -p /usr/local/gitlab/config
[root@node1 ~]# mkdir -p /usr/local/gitlab/logs
[root@node1 ~]# mkdir -p /usr/local/gitlab/data

# 启动运行gitlab容器
[root@node1 ~]# docker run --detach --hostname 192.168.40.150 --publish 7001:443 --publish 7002:80 --publish 7003:22 --name gitlab --restart always \
> --volume /usr/local/gitlab/config/:/etc/gitlab \
> --volume /usr/local/gitlab/logs/:/var/log/gitlab \
> --volume /usr/local/gitlab/data/:/var/opt/gitlab gitlab/gitlab-ce
a8eac9ac773b234c14eec081c3f39cb4e883d0cd36e4388de73e0751212e7c43

# 查看已运行容器
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE              COMMAND             CREATED              STATUS                                 PORTS                                                                                                                   NAMES
a8eac9ac773b   gitlab/gitlab-ce   "/assets/wrapper"   About a minute ago   Up About a minute (health: starting)   0.0.0.0:7003->22/tcp, :::7003->22/tcp, 0.0.0.0:7002->80/tcp, :::7002->80/tcp, 0.0.0.0:7001->443/tcp, :::7001->443/tcp   gitlab

# 修改gitlab.rb配置文件
[root@node1 ~]# vim /usr/local/gitlab/config/gitlab.rb
# 到最后一行添加以下内容：
external_url 'http://192.168.40.150'			# Linux服务器IP
gitlab_rails['gitlab_ssh_host'] = '192.168.40.150'
gitlab_rails['gitlab_shell_ssh_port'] = 7003			# ssh端口
# 保存退出

# 进入gitlab容器重启服务
[root@node1 ~]# docker exec -it gitlab /bin/bash
root@192:/# gitlab-ctl reconfigure

# 退出gitlab容器，重启gitlab容器
root@192:/# exit
exit
[root@node1 ~]# docker restart gitlab
gitlab

# 安装net-tools并查看端口
[root@node1 ~]# yum -y install net-tools

[root@node1 ~]# netstat -tnl
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:7001            0.0.0.0:*               LISTEN
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:7002            0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:7003            0.0.0.0:*               LISTEN
tcp6       0      0 :::22                   :::*                    LISTEN
tcp6       0      0 :::7001                 :::*                    LISTEN
tcp6       0      0 ::1:25                  :::*                    LISTEN
tcp6       0      0 :::7002                 :::*                    LISTEN
tcp6       0      0 :::7003                 :::*                    LISTEN

六、浏览器访问：http://192.168.40.150（Linux服务器IP）:7002

# 出现这个界面说明安装成功，接下来需要进到容器里重置密码
[root@node1 ~]# docker exec -it gitlab /bin/bash
root@192:/# gitlab-rails console -e production
--------------------------------------------------------------------------------
 Ruby:         ruby 2.7.4p191 (2021-07-07 revision a21a3b7d23) [x86_64-linux]
 GitLab:       14.4.1 (1a23d731c9f) FOSS
 GitLab Shell: 13.21.1
 PostgreSQL:   12.7
--------------------------------------------------------------------------------
Loading production environment (Rails 6.1.4.1)
irb(main):001:0> user = User.where(id: 1).first
=> #<User id:1 @root>
irb(main):002:0> user.password = '12345678'
=> "12345678"
irb(main):003:0> user.password_confirmation = '12345678'
=> "12345678"
irb(main):004:0> user.save!
Enqueued ActionMailer::MailDeliveryJob (Job ID: 5f22b4b1-1534-482a-88c1-40b8a947cf2d) to Sidekiq(mailers) with arguments: "DeviseMailer", "password_change", "deliver_now", {:args=>[#<GlobalID:0x00007f6e42f74560 @uri=#<URI::GID gid://gitlab/User/1>>]}
=> true
# 重置密码成功，密码为：12345678，接下来重新访问网址，用户：root；密码：12345678

七、添加Windows本机的公钥到gitlab并在gitlab创建一个空项目——hellospringboot

1. 拷贝公钥




2. 创建空项目——hellospringboot





到这里gitlab的部署算是完成了，接下来我们到IDEA创建git库，推送项目到gitlab

八、将IDEA里的SpringBoot项目推送到gitlab上

到这里我们将SpringBoot项目推送到gitlab的项目里的任务已经完成了，接下来我们要在Linux服务器上安装Git以及Jenkins的部署

九、CentOS安装Git并部署Jenkins

# 先将原本的git卸载了
[root@node1 ~]# rpm -qa|grep git
net-tools-2.0-0.25.20131004git.el7.x86_64
crontabs-1.11-6.20121102git.el7.noarch
linux-firmware-20200421-80.git78c0348.el7_9.noarch
[root@node1 ~]# yum remove -y crontabs-1.11-6.20121102git.el7.noarch linux-firmware-20200421-80.git78c0348.el7_9.noarch

[root@node1 ~]# rpm -qa|grep git
net-tools-2.0-0.25.20131004git.el7.x86_64

# 安装git
[root@node1 ~]# yum -y install git

[root@node1 ~]# rpm -qa|grep git
net-tools-2.0-0.25.20131004git.el7.x86_64
git-1.8.3.1-23.el7_8.x86_64

# 创建Jenkins的映射目录
[root@node1 ~]# mkdir -p /usr/local/jenkins/workspace

# 创建Jenkins容器并运行
[root@node1 ~]# docker run -uroot -d --restart=always -p 9001:8080 \
> -v /usr/local/jenkins/workspace/:/var/jenkins_home/workspace \
> -v /var/run/docker.sock:/var/run/docker.sock \
> -v /usr/bin/git:/usr/bin/git \
> -v /usr/local/jdk1.8/:/usr/local/jdk1.8/ \
> -v /usr/local/maven3/:/usr/local/maven3/ --name jenkins jenkins/jenkins:lts
bf5659973f89a77dd6b3cefa6c250679437cc3f153a60d3042cf62ded0f7e2c5
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE                 COMMAND                  CREATED              STATUS                       PORTS                                                                                                                   NAMES
bf5659973f89   jenkins/jenkins:lts   "/sbin/tini -- /usr/…"   About a minute ago   Up About a minute            50000/tcp, 0.0.0.0:9001->8080/tcp, :::9001->8080/tcp                                                                    jenkins
a8eac9ac773b   gitlab/gitlab-ce      "/assets/wrapper"        About an hour ago    Up About an hour (healthy)   0.0.0.0:7003->22/tcp, :::7003->22/tcp, 0.0.0.0:7002->80/tcp, :::7002->80/tcp, 0.0.0.0:7001->443/tcp, :::7001->443/tcp   gitlab

# 配置libpcre.so.3的软连接并生成Jenkins的秘钥和公钥
[root@node1 ~]# docker exec -it -uroot jenkins /bin/bash
root@bf5659973f89:/# git
git: error while loading shared libraries: libpcre.so.1: cannot open shared object file: No such file or directory
root@bf5659973f89:/# ldd $(which /usr/bin/git)
        linux-vdso.so.1 (0x00007ffd5c0b1000)
        libpcre.so.1 => not found
        libz.so.1 => /lib/x86_64-linux-gnu/libz.so.1 (0x00007f62ce68b000)
        libpthread.so.0 => /lib/x86_64-linux-gnu/libpthread.so.0 (0x00007f62ce669000)
        libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007f62ce4a4000)
        /lib64/ld-linux-x86-64.so.2 (0x00007f62ce6ad000)
root@bf5659973f89:/# cd /lib/x86_64-linux-gnu/
root@bf5659973f89:/lib/x86_64-linux-gnu# ln -s libpcre.so.3 libpcre.so.1
root@bf5659973f89:/lib/x86_64-linux-gnu# ssh-keygen -t rsa -C "root"
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa
Your public key has been saved in /root/.ssh/id_rsa.pub
The key fingerprint is:
SHA256:sNKM/ch97SBbKP8L/eCK3ip07qPQIVQWZ21Y737knAk root
The key's randomart image is:
+---[RSA 3072]----+
|    +.o+.        |
|   o o. o.       |
|  .   ..  .      |
| .   = o .       |
|  . + = S E .    |
|   o.+.+ + * o   |
|  ...o+ * B B    |
|   .. o= B *     |
|    .==o=o+.o    |
+----[SHA256]-----+
root@bf5659973f89:/lib/x86_64-linux-gnu# cd
root@bf5659973f89:~# cd /root/.ssh/
root@bf5659973f89:~/.ssh# ls
id_rsa  id_rsa.pub  known_hosts
root@bf5659973f89:~/.ssh# cat id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQCtCOXBcIb6piqYG5o41eQkPwhsxr6Zu7/uZhopfKfleAL4/h9FdXNumLeVGzPUf6Zpub+Ei7AcMjX6jZvGuaWNwlHzFRIEOYk3HvDWkYxcsjA/j/NMANveEKPcK6j9W8PR5idJTN8AC1U6nDy2YYoioLsCMmJT/qydNdLe9nB+5k0i59J2l/eCXTVv3j2qpP1L9AvEFamlpHYEYhOtqeBlnANPl4sgcSmaBLpOh9XJcolZ64BVSAo6w36gvRMc48/dFUcbO3rY5K+aCbDhB6m2BkukmpHBkIpf5u/xKyuqrN6EryxHqVUpL3WBvvGfCnCRphfpm4LXwXzgAJuAIoTSi5SRU22y/oJ8rcbpXiYhqlUHIPdSV/xDei0q9+1fRABLNEadPVCetC2+UxRsQnFAXGxkcomj4BVht7jI6MNM+02h/nx1FkqxKYVVT7w8avMXky+A020FVNjhKMu9JQthZz21uguDIP4btHj0dr8arV6cHh07ItEh0EEnK23FMpE= root

到这里就将这个SSH公钥添加到gitlab上，之后做项目拉取

# 添加Jenkins的SSH公钥后，就可以进行项目拉取了
root@bf5659973f89:~/.ssh# git clone ssh://git@192.168.40.150:7003/root/hellospringboot.git
Cloning into 'hellospringboot'...
remote: Enumerating objects: 34, done.
remote: Counting objects: 100% (34/34), done.
remote: Compressing objects: 100% (21/21), done.
remote: Total 34 (delta 0), reused 0 (delta 0), pack-reused 0
Receiving objects: 100% (34/34), 53.54 KiB | 0 bytes/s, done.
root@bf5659973f89:~/.ssh#
# 拉取成功

到这里Jenkins的准备工作就做好了，接下来开始访问：http://192.168.40.150（Linux服务器地址）:9001

十、访问http://192.168.40.150（Linux服务器地址）:9001，进行部署Jenkins

# 查看管理员密码，将密码复制
root@bf5659973f89:~/.ssh# cat /var/jenkins_home/secrets/initialAdminPassword
e965f461c5c94fec80980061f810c99c
root@bf5659973f89:~/.ssh#

拷贝到Jenkins访问页面：

OK！到这里我们已经完成安装了，接下来进行插件安装、添加凭据、系统设置、全局设置、项目部署

到这里我们先去Linux服务器里修改 /usr/local/maven3/conf/settings.xml文件

# 配置镜像加速
[root@node1 conf]# vim /usr/local/maven3/conf/settings.xml
# 将以下内容添加到<mirrors></mirrors>之间
<mirror>
        <id>alimaven</id>
        <mirrorOf>central</mirrorOf>
        <name>aliyun maven</name>
        <url>http://maven.aliyun.com/nexus/content/repositories/central/</url>
</mirror>
# 保存退出

再回到jenkins界面：

到这里我们的配置已经完成了，接下来进行项目部署

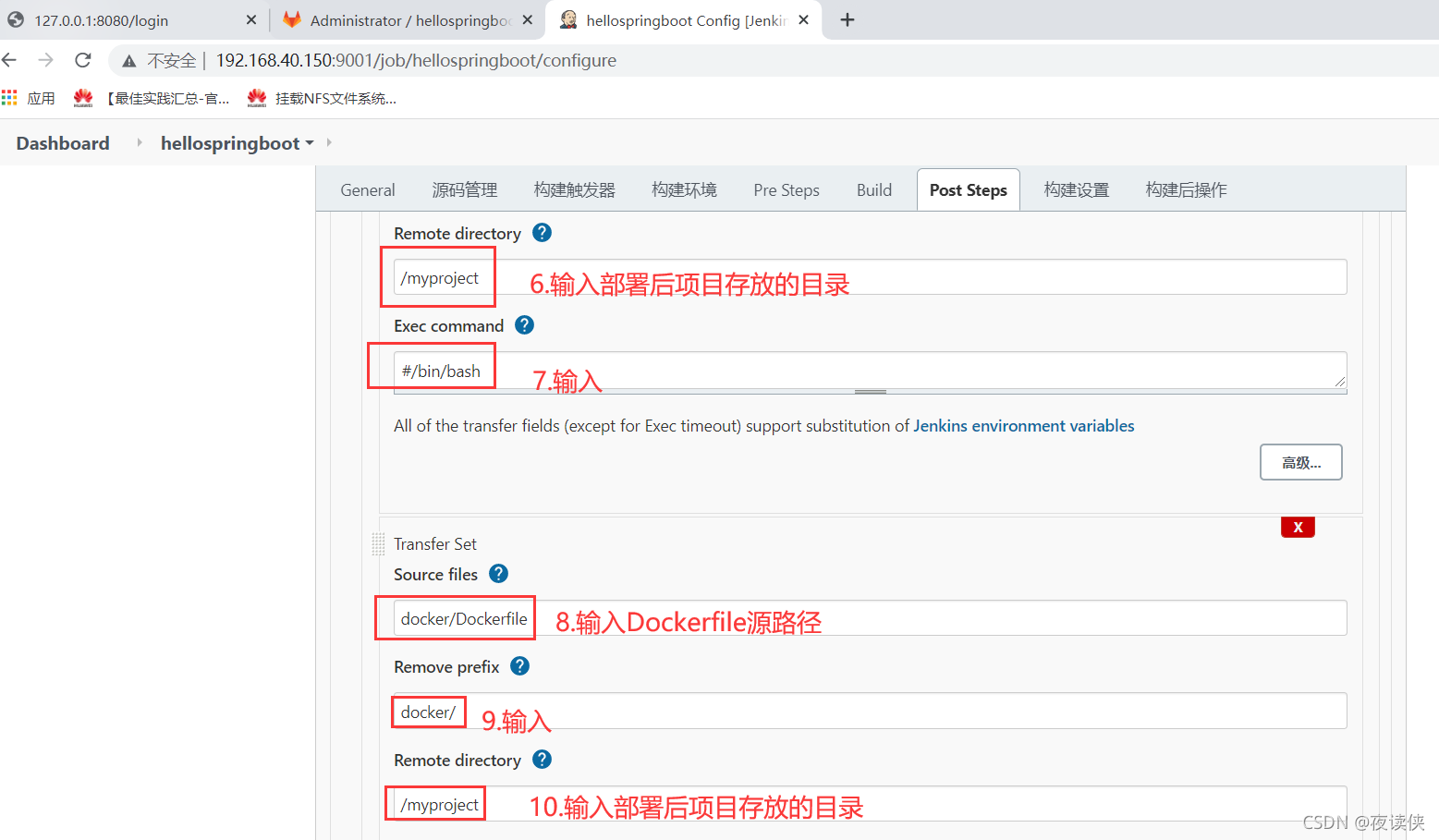

十一、hellospringboot项目在Jenkins自动化部署

到这里我们可以看到，部署完成，很顺利，接下来浏览器访问：http://192.168.40.150:8080/login

可以看到我们完成了docker+gitlab+jenkins的自动化部署，下面可以进到Linux服务器里面查看情况

docker images——查看所有已有镜像
可以看到lzzy/hellospringboot这个镜像就是我们刚刚自动化部署自动制作的一个镜像
相当于我们写了一个java程序项目
我们完成了java项目打包、创建git库、将java项目推送到gitlab上、再用jenkins将gitlab上的项目拉取到jenkins容器
然后通过jenkins实现自动将java项目包制作成镜像、做成docker容器、启动容器后我们即可访问

部署结束！！！
